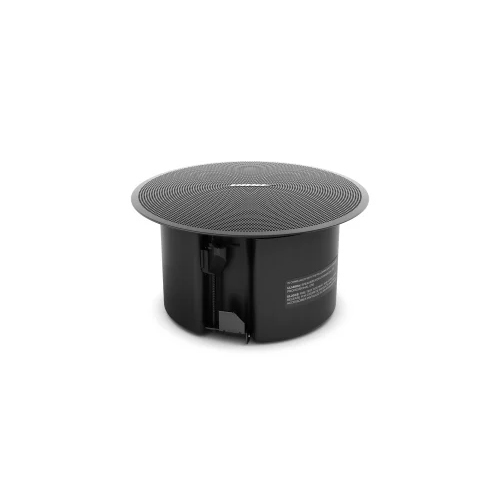

20 Watt DM2C-LP Bose Design Max Loud Speaker
20 Watt DM2C-LP Bose Design Max Loud Speaker
images Send Inquiry
Request To Call Back

20 Watt DM2C-LP Bose Design Max Loud Speaker

Price 20780 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

20 Watt DM2C-LP Bose Design Max Loud Speaker Specification

  • Channels
  • 2.0
  • Frequency (MHz)
  • 50 Hertz (HZ)
  • Power
  • 20 Watt (w)
  • Usage
  • Home Theater
  • Color
  • Black
  • Warranty
  • 2 Year


20 Watt DM2C-LP Bose Design Max Loud Speaker Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Pieces Per Month
  • Delivery Time
  • 5-7 Days
  • Main Domestic Market
  • All India


About 20 Watt DM2C-LP Bose Design Max Loud Speaker

TECHNICAL SPECIFICATIONCOMPLIANCE

  • Safety Agency Ratings

  • UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL

  • Colors

  • Black (RAL 9005), white (similar to RAL 9003), paintable

  • Cutout Diameter

  • 9.8 in (250 mm)

  • Enclosure Material

  • Engineered-plastics front baffle with integrated steel-formed back can

  • Environmental Testing

  • Indoor only

  • Grille Material

  • Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether

  • Logo

  • Rotatable, removable

  • Mounting/Rigging Provisions

  • (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points

  • Net Weight

  • 9.6 lb (4.5 kg), loudspeaker with grille (single) / 1.9 lb (0.9 kg), tile bridge (single)

  • Operating Temperature

  • 0 C to 50 C (32 F to 122 F)

  • Product Dimensions (HWD)

  • 11.9 in 8.1 in (303 mm 205 mm), loudspeaker diameter depth / 9.6 in 7.6 in (243 mm 192 mm), backcan diameter depth

  • Shipping Weight

  • 29.0 lb (13.2 kg), pair

PERFORMANCE

  • Frequency Range (-10 dB)

  • 65 Hz 20,000 Hz

  • Coverage, Horizontal

  • 130 conical

  • Maximum SPL at 1 m

  • 105 dB

  • Nominal Impedance

  • 8 (transformer bypass)

  • Power Handling, Continuous

  • 60 W

  • Power Handling, Peak

  • 240 W

  • Recommended Signal Processing

  • Not required, Bose Professional EQ voicing and SmartBass processing available

  • Sensitivity (SPL/1 W at 1 m)

  • 87 dB

  • Transformer Taps, 100V

  • 6, 12, 25, 50 W, bypass

  • Transformer Taps, 70V

  • 3 W, 6 W, 12 W, 25 W, 50 W, bypass

  • Coverage, Vertical

  • 130 conical

TRANSDUCERS

  • Crossover Frequency

  • 1.8 kHz, passive 2-way crossover

  • Driver Protection

  • Recommended high-pass protection 65 Hz with recommended 24 dB/octave filter

  • High-Frequency Transducer Quantity and Size

  • 1 1 in (25 mm) neodymium dome tweeter, coaxially mounted

  • Low-Frequency Transducer Quantity and Size

  • 1 5.25 in (133 mm) woofer

PRODUCT CODES
  • 829683-0110
  • DESIGNMAX DM5C PAIR BLK
  • 829683-0210
  • DESIGNMAX DM5C PAIR WHT

The 20 Watt DM2C-LP Bose Design Max Loud Speaker is a powerful home theater speaker with a frequency of 50 Hertz (HZ) and 20 Watt (w) power output. With 2.0 channels, this speaker delivers high-quality sound in a sleek black design. It comes with a 2-year warranty, ensuring durability and reliability for your entertainment needs.

FAQs of 20 Watt DM2C-LP Bose Design Max Loud Speaker:


Q: What is the frequency range of this speaker?

A: The frequency of this speaker is 50 Hertz (HZ).

Q: How much power does this speaker have?

A: This speaker has a power output of 20 Watt (w).

Q: What is the color of this speaker?

A: This speaker comes in a stylish black color.

Q: How many channels does this speaker have?

A: This speaker has 2.0 channels for immersive sound experience.

Q: What is the warranty period for this speaker?

A: This speaker comes with a 2-year warranty for added peace of mind.

20 Watt DM2C-LP Bose Design Max Loud Speaker
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Indoor Ceiling Mount Speaker Category

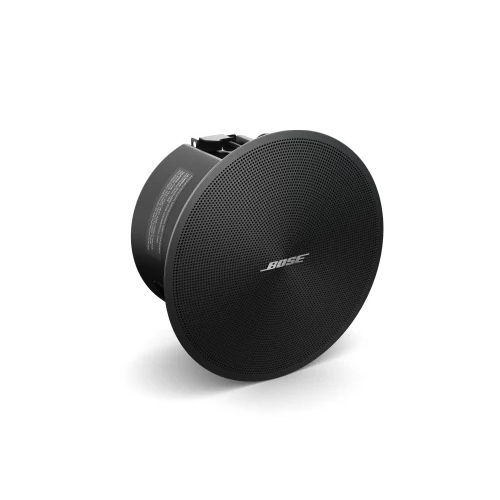

DM2C-LP Bose Design Max Loud Speaker
